EFTPOS Terminal Testing Robot T4

Auf Anfrage

EFTPOS Terminal Testing Robot T4

The next step in the evolution of payment test automation: T4 offers simultaneous testing of up to 4 terminals at the same time in a faster, bigger, more efficient package. Compatible with all EFTPOS terminal models currently on the market.


  • Testing up to 4 terminals at once. The robot base has ample room for the mounting of terminals of all sizes, thus testing bigger terminals simultaneously with smaller ones is possible
  • Many POS terminals supported – whether it is a traditional payment terminal, an Android terminal, with or without touch screen, we support both. Due to the faster movement, Robot T4 is even more suitable for the testing of touch screen terminals

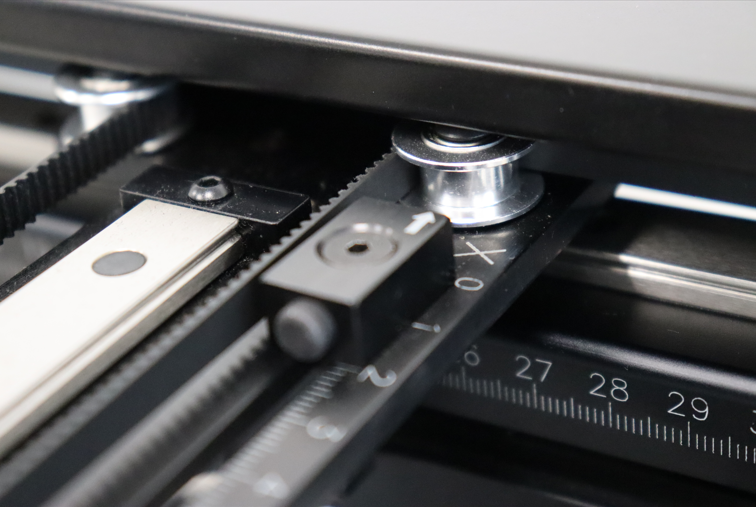

  • Fast and easy calibration of the EFTPOS terminal

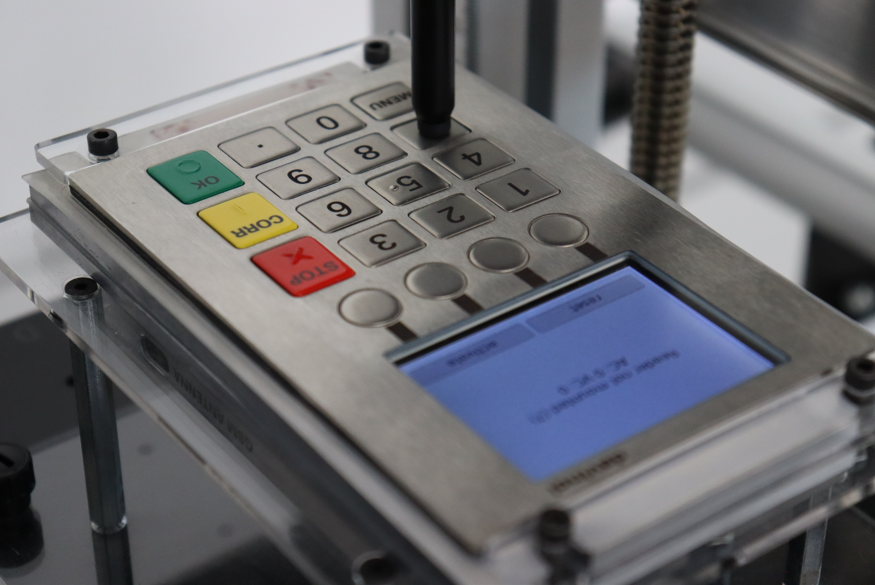

  • Robot can enter pin and can press other keypad buttons. Touch screen press including gestures is also supported and improved. Due to its speed, testing performance will not be affected even when testing multiple EFTPOS terminals at once

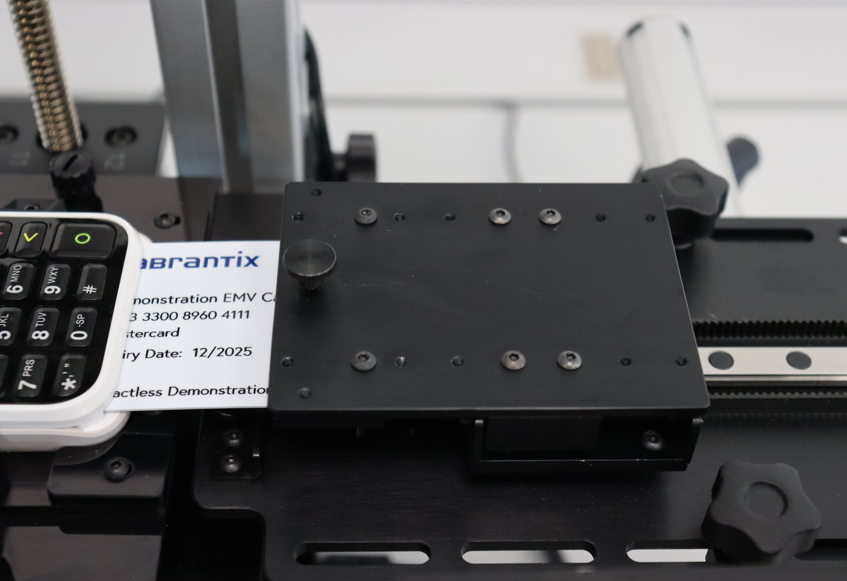

  • One card arm included in the package, with up to 3 more available for purchase. Each with 150 mm of reach and many different installation options
  • Simple API for fast integration included
  • Offers seamless integration with other Abrantix hardware like Magstripe, Card Multiplexers, contactless probes
  • Possibility to mount a camera directly on the robot and validate receipt and display texts
  • Ethernet and Wi-Fi connectivity

Use cases:

  • Merchant POS Environment testing, Cash register with integrated payment terminal
  • Acquirer Integration Testing (EMV Compliance), MTIP, ADTV, EMV Level 3
  • Vending Machine and Petrol payment testing
  • Hardware testing for terminal manufacture
  • Testing of multiple different or same terminal models at the same time.
  • Multiple regression testing of older software version at the same time

Robot package includes:

  • Robot T4 including single arm for card insertion (more can be obtained separately)
  • Power Supply
  • Tools and accessories for a fast installation of the robot

You can find more use cases on our youtube video channel .

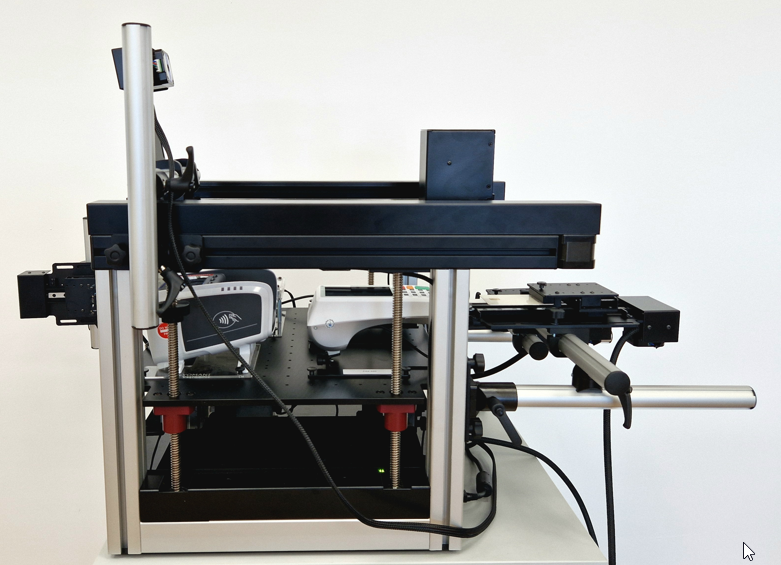

X / Y / Z cartesian coordinates system

Made from Aluminium

Moves up to 20'000 mm/minute

Supports the mounting of terminals of height up to 200 mm

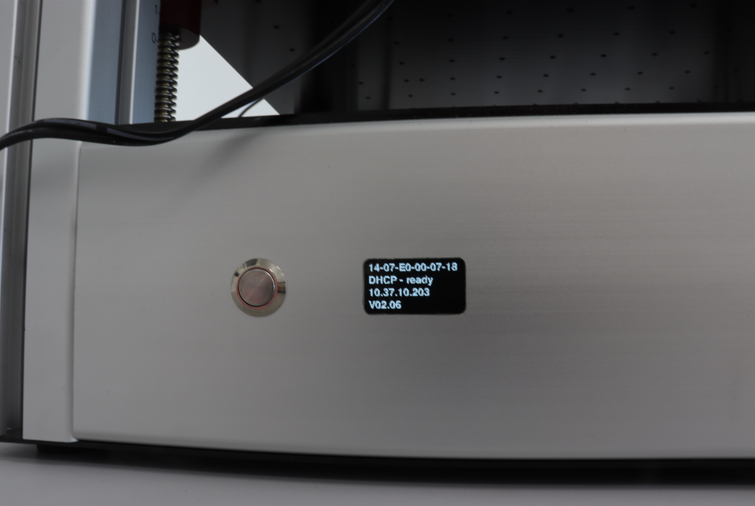

OLED display


L570xW420xH510 mm


17 kg

Power Consumption:

Max. 24 V, 9.2 A

Control Interface:

RJ45 10/100 standard ethernet, Wi-Fi

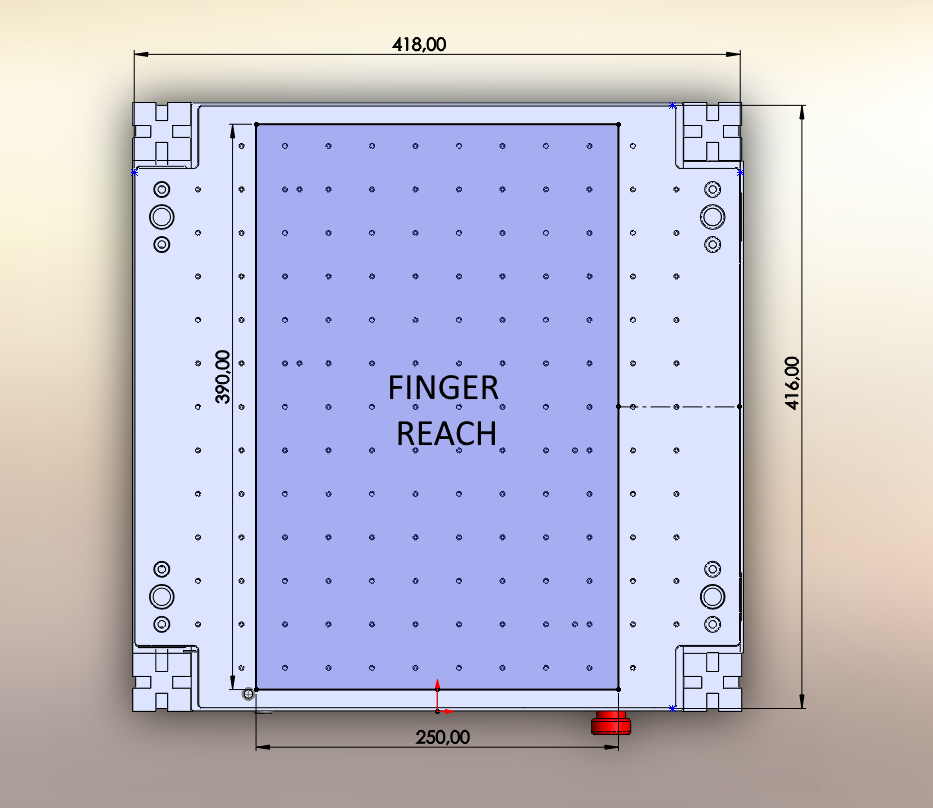

Finger reach:

X: 250 mm, Y: 390 mm, Card arm reach: 150 mm

Package dimensions:

L720xW700xH550 mm

Package weight:

40 kg
