Contactless Card Multiplexer 8 card

$ 5,000.00

excl. VAT

SKU: NFCM-1

Category:

de/produkte-card-multiplexers

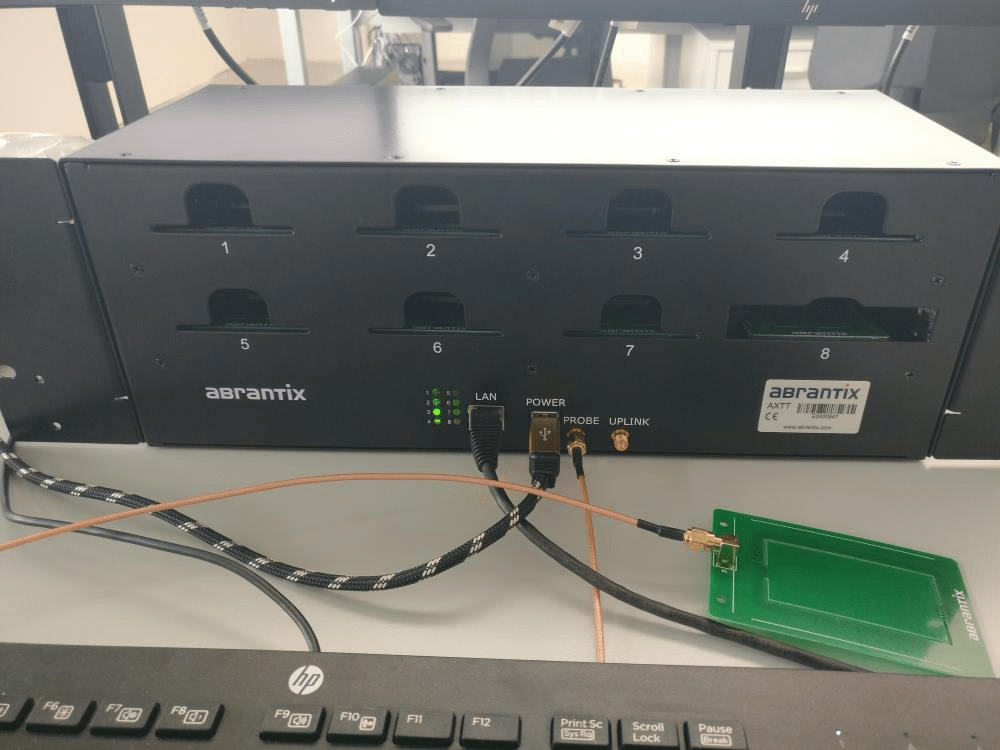

If you need to test with real test cards you can use the contactless card multiplexer to get access to 8 cards through one card probe. The contactless card multiplexer can be chained. This means that you can use as many card mux as you like, containing as many cards as you like.

ask for quote_

Description
Technical Specs

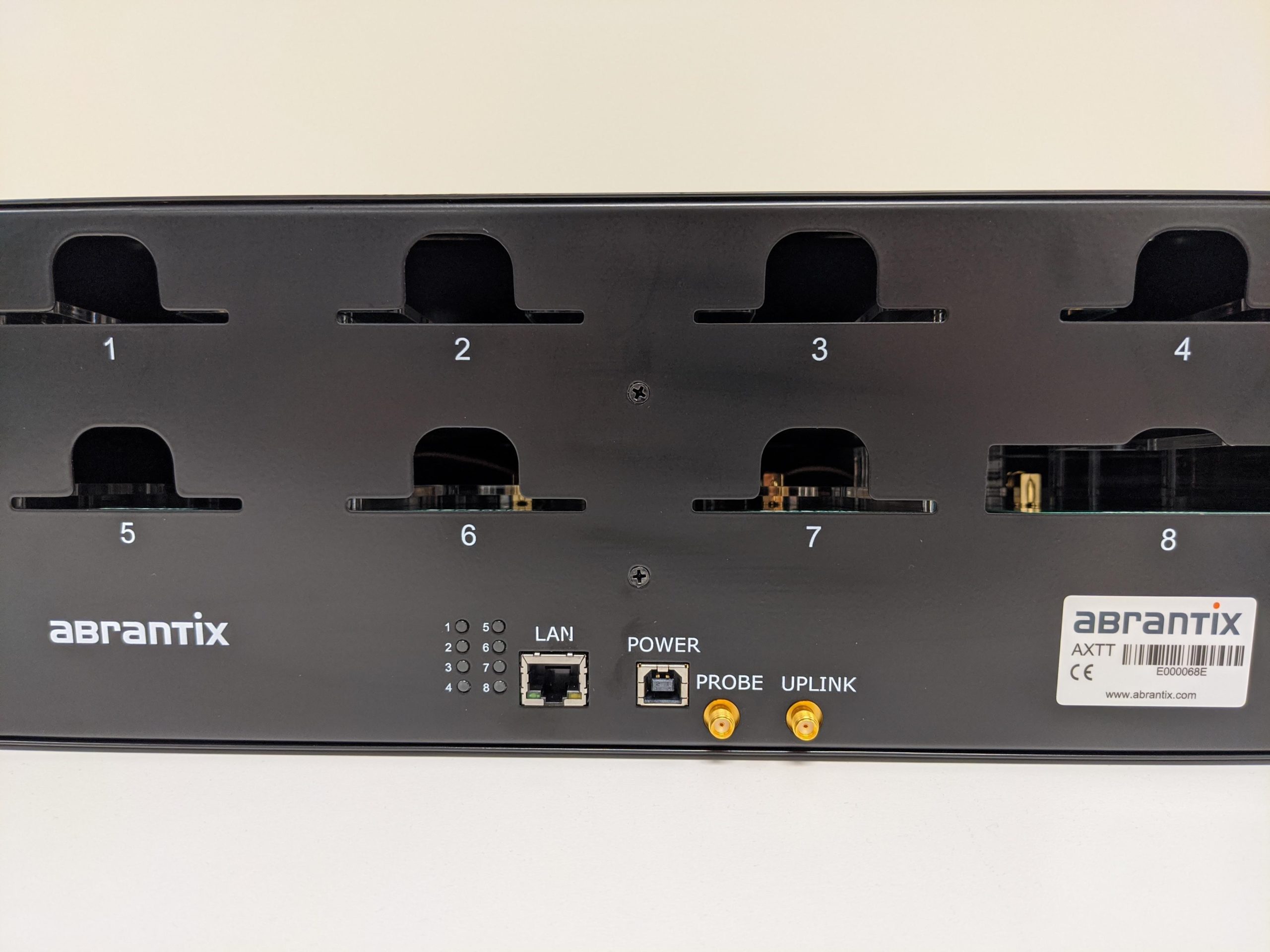

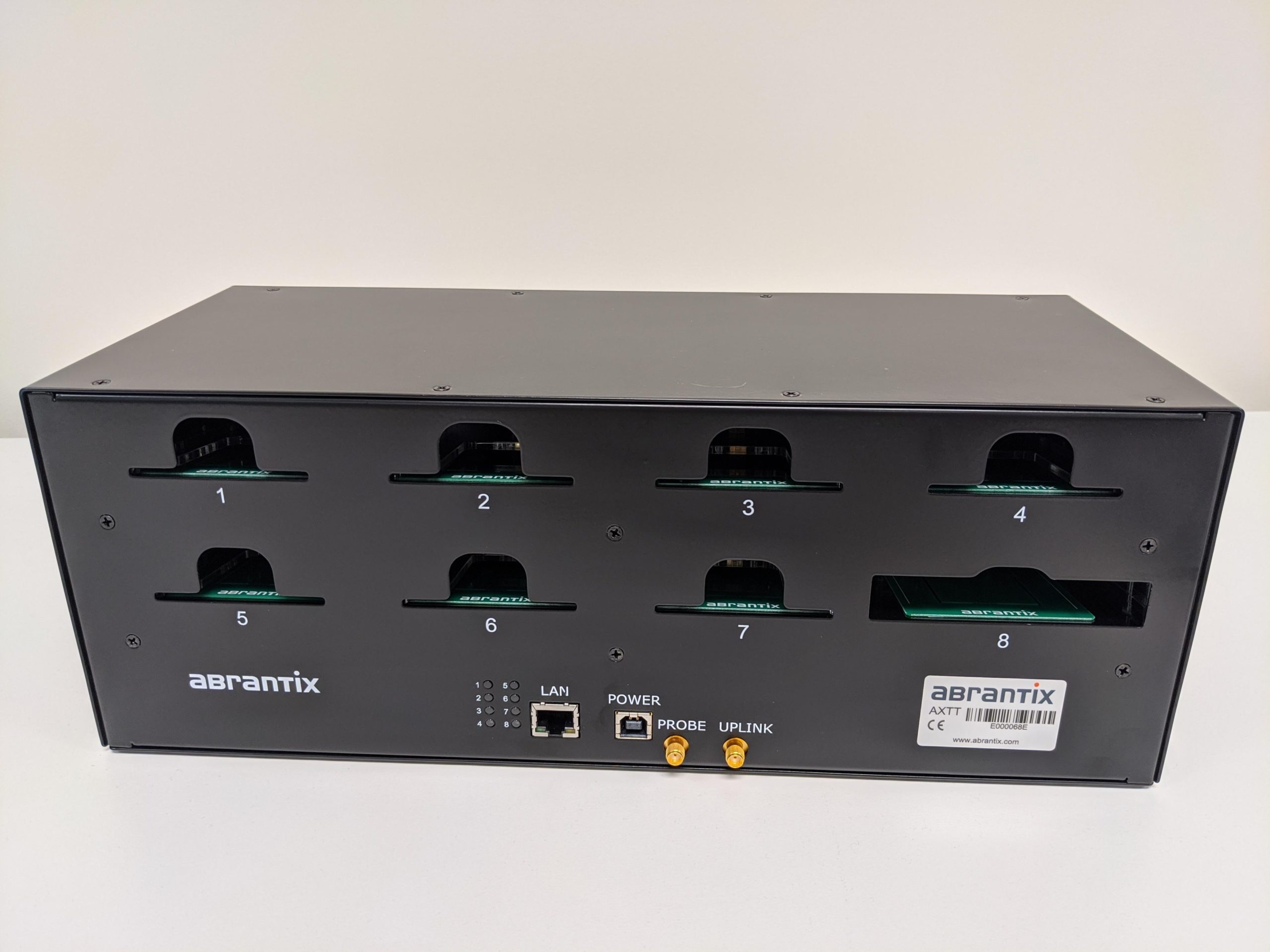

The contactless card mux comes in a 19 inch rack mount version. If you put the contactless card mux into a lockable 19 inch rack, you can store your test cards in a secure place and you will never lose test cards again.

Features:

4 U 19 inch rack mount version or table top version with rubber feet.
Mux can be chained allowing to access as many cards as you like
Easy to use card selection application
Rest API for integration into existing test automation frameworks
100% compliant with Abrantix PaytestHub test automation cloud

Technical Specifications

Compatible with:	ISO-14443 contactless chip cards
* Supported Configurations:	Stacking up to a max of 8 multiplexers (up to 56 cards)
Control Interface:	RJ45 10/100 standard ethernet by UDP commands. The device acts as a DHCP client
Power Consumption:	Max. 5V 1A

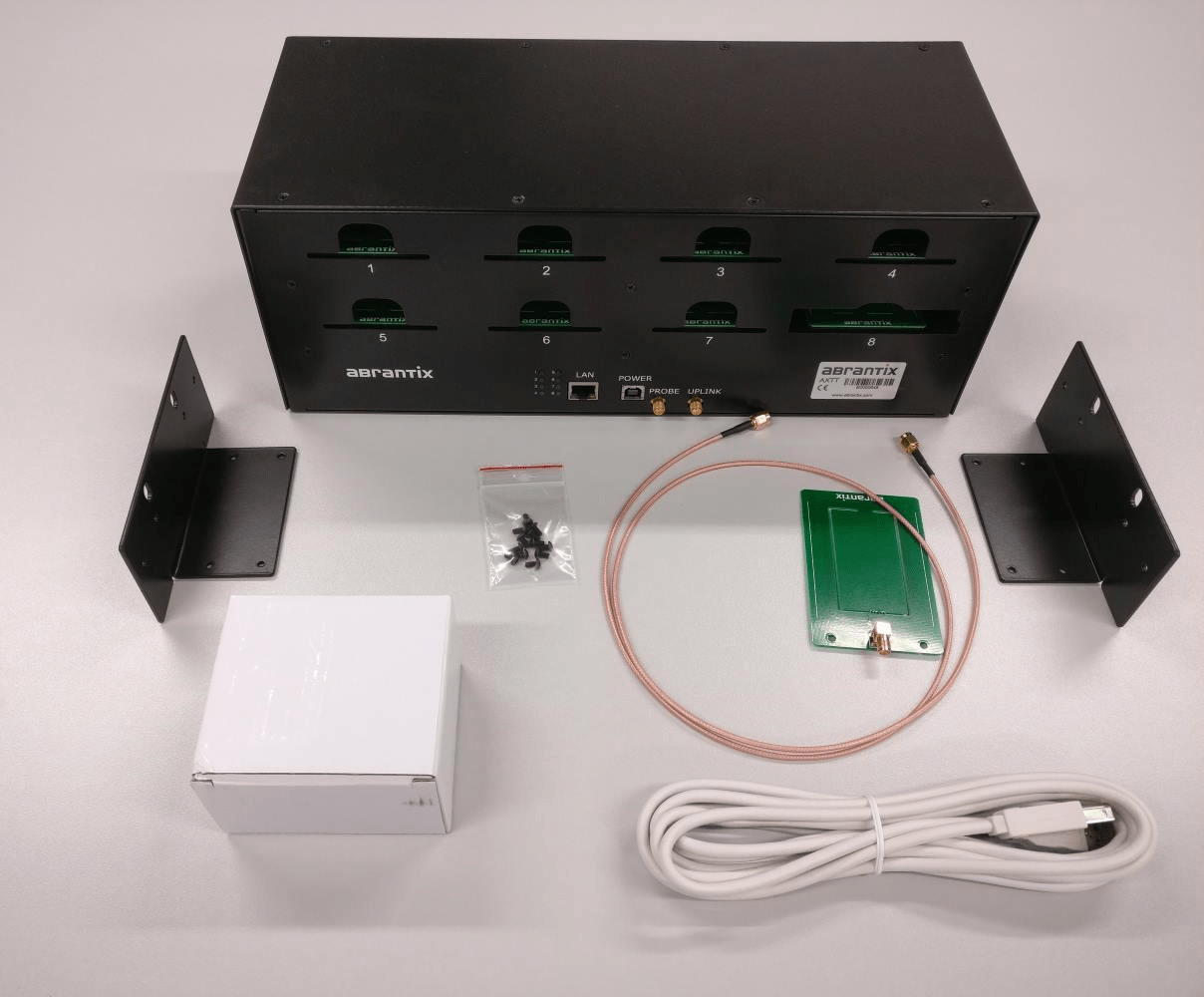

Package contents:	1 x contactless card multiplexer, 1 x contactless card probe incl. Cable, 1 x power supply with multi-country blades (North America, Europe, United Kingdom, Australia), 1 x rack mounting bracket set
Weight:	2.9kg
Length:	22cm
Width:	48.26cm (19inch)
Height:	17.9cm (4 U)
Depth:	15.8cm

* The overall cable length between card and reader should not exceed 5m.
